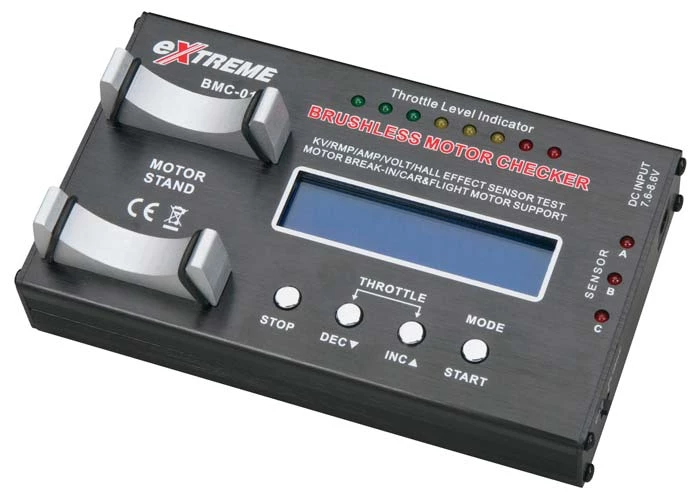

Extreme BMC-01 Brushless Motor Checker W/ Hall Effect Sensor Test & Car Diff. Break In 26P-MotorChecker

FEATURES:

Measures kV, RPM and Ampere rating of sensored and sensorless brushless motors Performs Hall Effect sensor test of sensored motors Throttle level indicator Hall Effect sensors indicator 2×16 character LCD displays real time measuring value of sensored or sensorless brushless motors

INCLUDES:

BMC-01 Brushless Motor Checker with three Motor Power Wires, Hall Effect Wire, DC Input Wire with Alligator Clamps and Instruction Manual

REQUIRES:

7.4 – 8.6V input voltage

SPECS:

Input Voltage: 7.4 – 8.6V (7.4V 2S1P LiPo Battery Suggested) LCD Display Screen: Blue backlight background, white text, 16 characters X two lines Dimensions: 5.4 x 3.2 x 1.8″ (136.5 x 80.6 x 47mm) Weight: 10.2oz (290g) Supported Motors: Sensor or sensorless brushless 540 Size RC Car Motor: 2.5 turns or over 2 poles (inrunner) Flight Motor: Sensorless 6 poles (outrunner) Current Draw: Less than 18A @ 8.4V without loading
