EZRUN Brushless System Combo B1 W/ 35A ESC And 13T@3000KV 3650M Brushless Motor For 1/12, 1/10 On-road Racing For Beginners

Original price was: $76.99.Current price is: $53.89.

SKU: 07E-EZRUN-Combo-B1 Category: Motors Tag: Motors

SSL encryption, absolutely safe shopping
Shop with Confidence, Pay Safely
The best quality products, always.
Buy with confidence, backed by quality.

Description
Reviews (0)

Model

EZRUN Series Brushless System Combo for 1/12 and 1/10 Cars (Version 2.0)

Manual

User Manual for ESC User Manual for Program Card

Preview

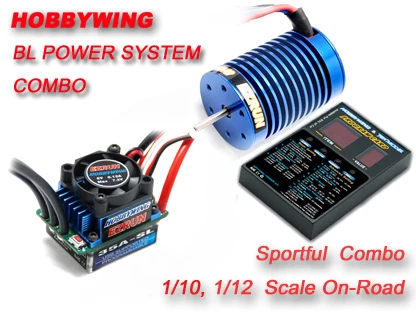

1   The Combo Includes the Following Products:

ESC:                   EZRUN-35A-SL or EZRUN-60A-SL 1pcs
Motor                 EZRUN-3650M (9T/12T/32T) or EZRUN-3650 (5.5T/8.5T) Brushless motor 1pcs
Program Card  3 Digital LEDs Program Card 1pcs

2 Combos and Main Applications

Combo No.

ESC

Motor

Main Applications

Combo-B1

EZRUN-35A

13T@3000KV
(EZRUN-3650M Motor)

1/12, 1/10 on-road racing for beginners

Combo-B2

EZRUN-35A

9T@4300KV
(EZRUN-3650M Motor)

1/12,1/10 on-road racing for experienced drivers

Combo-B3

EZRUN-35A

32T@1200KV
(EZRUN-3650M Motor)

1/10 rock crawler

Combo-B4

EZRUN-60A

5.5T@6000KV
(EZRUN-3650 Motor)

1/12,1/10 off-road racing for experienced drivers

Combo-B5

EZRUN-60A

8.5T@4000KV
(EZRUN-3650 Motor)

1/12,1/10 off-road racing for experienced drivers

3 Features

3.1 Compatible with all sonsorless brushless motor.

3.2 Use top quality electronic components to enhance the current endurance ability of the ESC.

3.3 Excellent start-up, acceleration and linearity features.

3.4 With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode.

3.5 With 4 steps of maximum reverse force adjustment.

3.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.

3.7 With 9 start modes (Also called “Punch” ) from “Soft” to “Very aggressive” to suitable for different tracks.

3.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

3.9 With 8 steps of timing adjustment to get the best compatibility with various of motors.
3.10 Easily program with only one button and compatible with pocket-sized program card.

3.11 The ESC is USB supported. The firmware of the ESC can be updated through an USB adapter on the Advanced LCD Program Box (Optional device).

3.12 Top quality motor:
       Aluminium shell (case)
        High quality magnets
        Copper wires of high temperature endurance
        Good quality bearings

4 Programmable Items

For detail information, please read the user manual for reference.
