Sale!

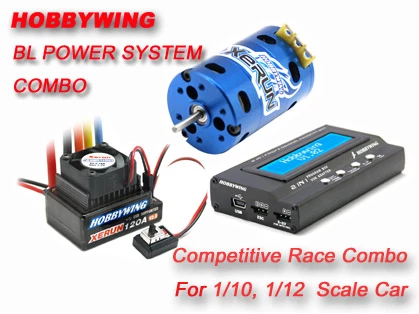

HobbyWing 1/10 1/12 Scale C-Xerun 8.5T 3650-4000KV 120A Sensored Brushless Motor/ESC/Program Card For RC Cars/ Truck

Original price was: $209.00.Current price is: $63.00.

SKU: 07E-8-5T-3650-4000KV-XERUN-120A-LCD Category: Motors Tag: Motors

SSL encryption, absolutely safe shopping
Shop with Confidence, Pay Safely
The best quality products, always.
Buy with confidence, backed by quality.

Description
Reviews (0)

The combo includes the following items:
a) XERUN-120A??or?XERUN-60A?brushless ESC with cooling fan: 1pcs
b) 3.5T, 4.5T, 5.5T, 6.5T, 8.5T, 10.5T or 13.5T sensored brushless motor: 1pcs
c)?Advanced professional LCD?program box?or?LED program card: 1pcs

?
1???Specification Of?The ESC??

1.1?Output:

?????? 1) XERUN-120A ESC: Continuous current 120A, burst current 760A
2) XERUN-60A ESC:???Continuous current 60A, burst current 360A?
1.2?Input:?4-9 cells NiMH/NiCd or 2-3 cells LiPo.???Note1

1.3?BEC Output:?5.75V@3A?linear mode built-in BEC

1.4?Resistance:

?????? 1) XERUN-120A ESC: 0.0003 Ohm
2) XERUN-60A ESC:?? 0.0006 Ohm

1.5?Motor Supported:?Sensored brushless / Sensorless Brushless.

1.6?Suitable Brushless Motor:??
1) XERUN-120A Combo

?????? With 2 cells Lipo or 4-6 cells NiMH, 1/10 on-road: >=3.5T, 1/10 off-road:??>=5.5T?
With?3 cells Lipo or 7-9 cells NiMH, 1/10 on-road: >=5.5T, 1/10 off-road:??>=8.5T???

2) XERUN-60A Combo

?????? With 2 cells Lipo or 4-6 cells NiMH, 1/10 on-road: >=5.5T, 1/10 off-road:??>=8.5T?
With?3 cells Lipo or 7-9 cells NiMH, 1/10 on-road: >=10.5T, 1/10 off-road:??>=17.5T

1.7?Suitable Car:??
1/10, 1/12 on-road or off-road cars / trucks for competition race.
1/10, 1/8 rock crawler.
1.8?Size:?43mm(L) * 36mm(W) * 33mm(H).
1.9?Weight:?

?????? 1) XERUN-120A ESC: 105g
2) XERUN-60A ESC:??? 80g?

Note1:

?For 4-6 cells NiMH or 2 cells Lipo: You need not change the cooling fan coming with the ESC;

?For 7-9 cells NiMH or 3 cells Lipo: You must change the standard cooling fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V)

2?? Combos And Main Applications

Combo	ESC	Motor	Program Card/Box	Main Application
COMBO-X1A	XERUN-120A	XERUN-3.5T	LCD Program Box	1/10, 1/12 On-road competitive?race (Modified group)
COMBO-X2A	XERUN-120A	XERUN-4.5T	LCD Program Box
COMBO-X3A	XERUN-120A	XERUN-5.5T	LCD Program Box	1/10?On-road normal race 1/10?Off-road competitive race (Modified group)
COMBO-X4A	XERUN-120A	XERUN-6.5T	LCD Program Box
COMBO-X5A	XERUN-120A	XERUN-8.5T	LCD Program Box	1/10, 1/12 On-road or Off-road normal race (Stock group )
COMBO-X6A	XERUN-120A	XERUN-10.5T	LCD Program Box
COMBO-X7A	XERUN-120A	XERUN-13.5T	LCD Program Box
COMBO-X8	XERUN-60A	XERUN-8.5T	LED Program Card
COMBO-X9	XERUN-60A	XERUN-10.5T	LED Program Card
COMBO-X10	XERUN-60A	XERUN-13.5T	LED Program Card

3? Specification Of?The Motors

Model	KV?	Diameter? mm?	Length mm (Without Shaft)	Shaft mm?	Shaft Length mm	Weight g?	Special?Notes
?3.5T	9100	?35.8	?52.5	?3.17?	15	165	?stepless?timing adjustment
?4.5T	7300	?35.8	?52.5	?3.17?	?15?	165	?stepless?timing adjustment
?5.5T	6000	?35.8	?52.5	?3.17?	15	165	?fixed timing
?6.5T	5200	?35.8	?52.5	3.17	15	165	?fixed timing
?8.5T	4000	?35.8	?52.5	3.17	15	160	?fixed timing
10.5T	3300	?35.8	?52.5	3.17	15	160	?fixed timing
13.5T	2500	35.8	52.5	3.17	15	160	fixed timing
17.5T	1900	35.8	52.5	3.17	15	160	?fixed timing

Each of the sensored motor is provided with a sersor wire as its accessory.

4?? Features

4.1?Compatible with all sonsorless brushless motors and most of?sensored brushless motors such as?LRP, Novak, Orion, Feigao, etc.

4.2 Seamlessly change to sensorless working mode when the sensor cable is broken.?

4.3 Lithium battery and NiMH battery supported.

4.4?Excellent start-up, acceleration and linearity features.

4.5 Firmware can be upgraded through an USB adapter on the Advanced?Professional LCD?Program Box (Optional? equipment).?
4.6 User programmable. ?Easily programmed with only one button on the ESC and compatible with?the?Digital LEDs Program Card?and the?Advanced?Professional LCD?Program Box.

5???Programmable Items??(Click the following picture to enlarge it)
