HobbyWing BL Justock Brushless System Combo ESC Motor XERUN-8.5T 4000 Kv For Racing/ Drift Racing

Original price was: $119.99.Current price is: $68.00.

SKU: 07E-COMBO-JS1 Category: Motors Tag: Motors

SSL encryption, absolutely safe shopping
Shop with Confidence, Pay Safely
The best quality products, always.
Buy with confidence, backed by quality.

Description
Reviews (0)

The combo has the following advantages:
a) It is a budget-friendly sensored brushless system with the best control feelings.
b) Timing is permanently set to zero degree (unchangeable) for fair racing.
c) Very suitable for Rock Crawler when the ESC work with 21.5T sensored motor (that is: Combo-JS6).

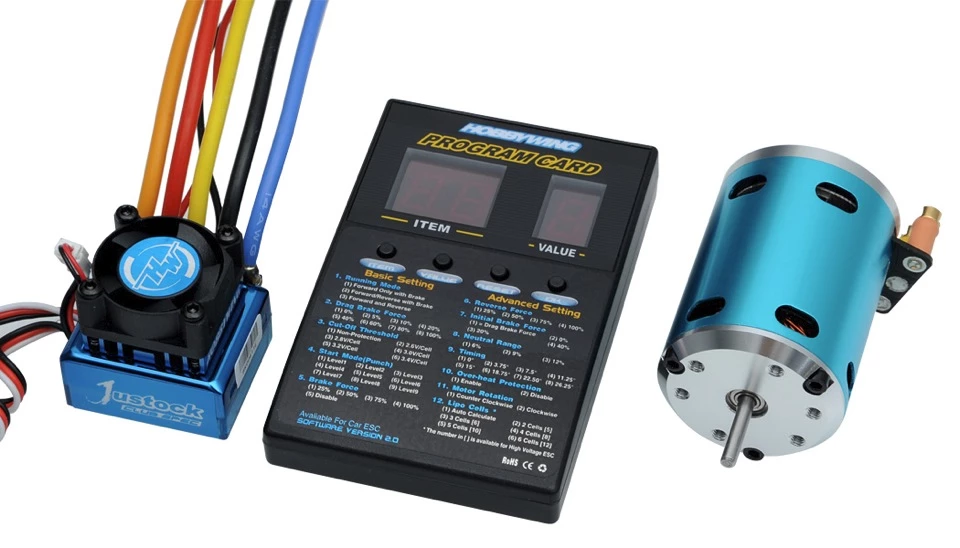

The combo includes the following items:
a) JUSTOCK brushless ESC: 1pcs
b) 8.5T, 10.5T, 11.5T, 13.5T, 17.5T or 21.5T sensored brushless motor : 1pcs
c) Digital LED Program Card : 1pcs

1 ESC Specification

1.1 Output: Continuous current 45A, burst current 260A.
1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo. Note1

1.3 BEC Output: 6V@2A linear mode built-in BEC.

1.4 Resistance: 0.0006 Ohm.

1.5 Motor Supported: Sensored brushless / Sensorless Brushless.

1.6 Suitable Brushless Motor:
With 2 cells Lipo or 4-6 cells NiMH, 1/10 on-road: >=8.5T, 1/10 off-road: >=11.5T
With 3 cells Lipo or 7-9 cells NiMH, 1/10 on-road: >=13.5T, 1/10 off-road: >=17.5T
1.7 Suitable Car:
1/10, 1/12 on-road or off-road cars / trucks.
1/10, 1/8 rock crawler.
1.8 Size: 33mm(L) * 28mm(W) * 31.5mm(H) (Cooling fan height included)
1.9 Weight: 59g (The weight of cooling fan not included)

Note1:

The cooling fan gets its power supply from built-in BEC.

2 ESC Features

2.1 Smart and small.

2.2 Sensored brushless ESC with the best control feelings, drives sensored and sensorless brushless motors.

2.3 Timing is permanently set to zero degree (unchangeable). With the identical racing motor, each driver has the same power system to have a real fair racing.

2.4 Firmware updatable, but always with zero timing. Compliant with ROAR SPORTMAN rules.
2.5 Very suitable for Rock Crawler when combined with a 21.5T sensored motor.

2.6 User programmable.
2.7 Easily programmed with the ?SET? button on the ESC, and also compatible with the Digital LED Program Cardand the Advanced Professional LCD Program Box.

2.8 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

2.9 Budget friendly. The cheap price makes a CLUB racing more popular and easier.

3 Programmable Items (Click the following picture to enlarge it)

For detail information, please read the user manual for reference.

4 Combos And Main Applications

Combo	ESC	Motor	KV	Program Card	Main Application
COMBO-JS1	JUSTOCK	XERUN-8.5T	4000	LED program card	Popular STOCK Racing/ Drift Racing in China
COMBO-JS2	JUSTOCK	XERUN-10.5T	3300	LED program card	STOCK (ROAR SPEC ) Racing / Drift Cars / M cars
COMBO-JS3	JUSTOCK	XERUN-11.5T	3000	LED program card	Popular STOCK Racing in Asia
COMBO-JS4	JUSTOCK	XERUN-13.5T	2500	LED program card	SUPPER STOCK Racing (Europe & US)
COMBO-JS5	JUSTOCK	XERUN-17.5T	1900	LED program card	STOCK Racing (Europe & US)
COMBO-JS6	JUSTOCK	XERUN-21.5T	1600	LED program card	ROAR SPEC Racing (US); Rock Crawler
