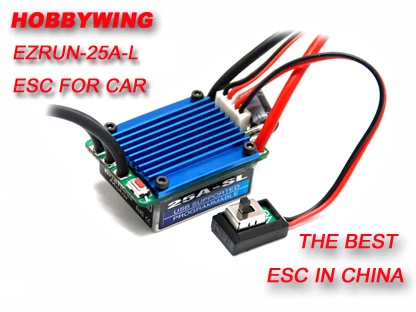

HobbyWing EZRUN-25A-L Brushless ESC For 1/18 Car (Version 2.0)

Original price was: $22.99.Current price is: $16.09.

SKU: 07E-eZRun-25A-SL-L-ESC Category: Motors Tag: Motors

SSL encryption, absolutely safe shopping
Shop with Confidence, Pay Safely
The best quality products, always.
Buy with confidence, backed by quality.

Description
Reviews (0)

Model	EZRUN-25A-SL-L Brushless ESC for 1/18 Car (Version 2.0)
Manual	User Manual
Accessory	Program Card for Car ESC
Preview	1 Specification 1.1 Output: Continuous current 25A, burst current 90A. 1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo. 1.3 BEC Output: 6V/1.5A. 1.4 Resistance: 0.005 Ohm. 1.5 Motor Supported: Sensorless Brushless Motor 1.6 Suitable Brushless Motor: With 4-6 cells NiMH/NiCd or 2 cells Lipo: On-Road≥12T, Off-Road≥18T; With 6-9 cells NiMH/NiCd or 3 cells Lipo: On-Road≥18T, Off-Road≥24T; 1.7 Suitable Car: 1/16, 1/18 on-road or off-road cars / trucks for normal race or sportful race. 1.8 Size: 31.5mm(L) * 27.5mm(W) * 16mm(H). 1.9 Weight: 23g(Without wires) 2 Features 2.1 Compatible with all sonsorless brushless motor. 2.2 Use top quality electronic components to enhance the current endurance ability of the ESC. 2.3 Excellent start-up, acceleration and linearity features. 2.4 With 3 running modes: Racing mode (Forward), Forward/Backward mode and Rock Crawler mode. 2.5 With 4 steps of maximum reverse force adjustment. 2.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment. 2.7 With 9 start modes (Also called “Punch” ) from “Soft” to “Very aggressive” to suitable for different tracks. 2.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection. 2.9 With 8 steps of timing adjustment to get the best compatibility with various of motors. 2.10 Easily program with only one button and compatible with pocket-sized program card. 2.11 The ESC is USB supported. The firmware of the ESC can be updated through an USB adapter on the Advanced LCD Program Box (Optional device). 3 Programmable Items For detail information, please read the user manual for reference.
