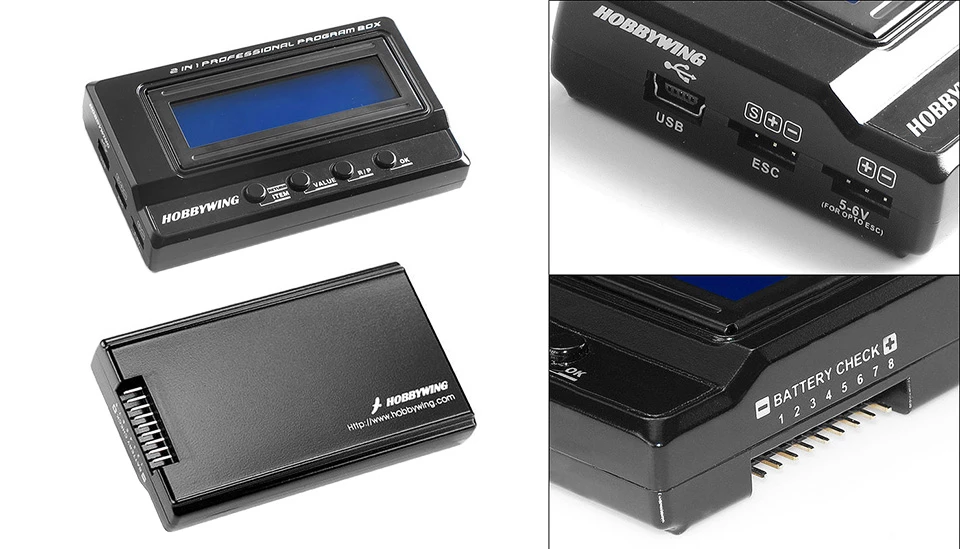

HobbyWing Multifunction LCD Program Box

1 Working Modes
1.1 Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.?
1.2 Works as an USB adapter to link the ESC with a PC to?update the firmware of the ESC or set the ESC byHOBBYWING USB LINK SOFTWARE?.
1.3 Works as?a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.

2 Specifications
2.1 Size: 90mm (L) * 51mm (W) * 17mm (H)
2.2 Weight: 65g?
2.3 Input Voltage: 4.5-12.6V
(If the ESC hasn?t a built-in BEC, you must use an additional battery pack to supply the program box)?
2.4 Displayer: 16*2 characters LCD.
2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)

3 Compared with the?“2 in 1 Professional LCD Program Box”
Models of LCD program boxes:

• 2 in 1 Professional LCD program box (Already stopped)

• Multifunction LCD program box: It is a new?priduct?uses MCU (microprocessor) with larger memory,?it?has a new function to work as Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.

• Multifunction LCD program box:?
  Because of its larger?memery?size, a single firmware can be?compatible with all speed controllers, including XERUN series V2.0/2.1/3.0/3.1, EZRUN V2.0, Platinum series?and Platinum?V3?series.

?
