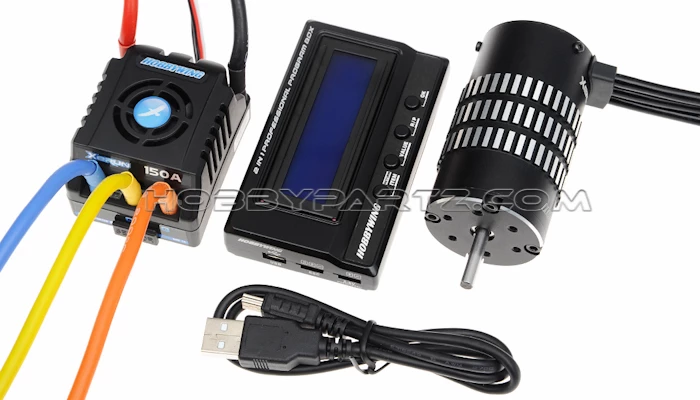

HobbyWing XERUN Power System W/XERUN-150A ESC 4274-2000KV Motor For 1/8 Monster Truck

Original price was: $199.99.Current price is: $73.00.

SKU: 07E-COMBO-M4A Category: Motors Tag: Motors

SSL encryption, absolutely safe shopping
Shop with Confidence, Pay Safely
The best quality products, always.
Buy with confidence, backed by quality.

Description
Reviews (0)

1 Specification

1.1 Output: Continuous current 150A, burst current 950A.
1.2 Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo. (2S lipo or 6 cells NiMH is not recommended )

1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).

1.4 Resistance: 0.0002 Ohm.

1.5 Motor Supported: Sensorless and sensored brushless motors

1.6 Suitable Brushless Motor:
When working with 4 cells Lipo: KV<=3000
When working with 6 cells Lipo: KV<=2400
The above T number is the value of a 4274 sized motor (Diameter=42mm, Length=74mm)

1.7 Suitable Car: 1/8 Buggy / Truggy / Monster.
1.8 Size: 58mm(L) * 46.5mm(W) * 35mm(H).
1.9 Weight: 105g(Without wires)

2 Features

1.1 Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
1.2 Excellent start-up, acceleration and linearity features.
1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
1.4 4 steps of maximum reverse force adjustment.
1.5 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
1.6 9 start modes (Also called ?Punch?) from ?very soft (Level 1)? to ?very aggressive (Level 9)?.
1.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
1.8 8 steps of timing adjustment by software.

1.9 Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
1.10 Easily program with only one button and compatible with pocket-sized Program Card.
1.11 Firmware can be updated through an USB adapter (Optional equipment).
1.12 Splash proof and dustproof.

1.13 Stable and reliable.

3 Programmable Items (Click the following picture to enlarge it)

For detail information, please read the user manual for reference.

4 Suggestion Of The Power System

Motor Type

Gear Rate

Power System Suggestion

Main Application

XERUN-4168SL
or
XERUN-4168SD

1:8 Buggy/Truggy:
10-15.5

1:8 Monster: 13-21

XERUN-150A-SD ESC
1:8 Buggy / Truggy with 4S Lipo
M1, 13T pinion

1:8 Monster with 4S Lipo
32 Pitch 19T pinion

Very powerful 1:8 EP Buggy / Truggy
1:8 Nitro-Powered Car converts to
Electric-Powered

Powerful 1:8 Monster

XERUN-4274SL
or
XERUN-4274SD

1:8 Monster

4 cells Lipo: 12-19

6 cells Lipo : 15-21

XERUN-150A-SD ESC
4 cells Lipo
32 Pitch, 21T pinion

6 cells Lipo
32 Pitch,17T pinion

Super powerful 1:8 Monster

4274-2000KV Motor

Model	KV	Max Current(A)	No-load Current?7.4V?	Resistance	Lipo Cell	Diameter?Length (mm)	Shaft mm	Shaft Length mm	Weight g
4274-2.5Y	2000	120A	2.7A	0.0062	4-6S	?39.8?73.8	?5	20	378g
