LED Program Card For Brushless ESC
Original price was: $8.99.$6.29Current price is: $6.29.
- SSL encryption, absolutely safe shopping
- Shop with Confidence, Pay Safely
- The best quality products, always.
- Buy with confidence, backed by quality.
|
Model |
LED Program Card (Version 2.0) | |
|
Manual |
User Manual | |
|
Accessory |
||
|
Preview |

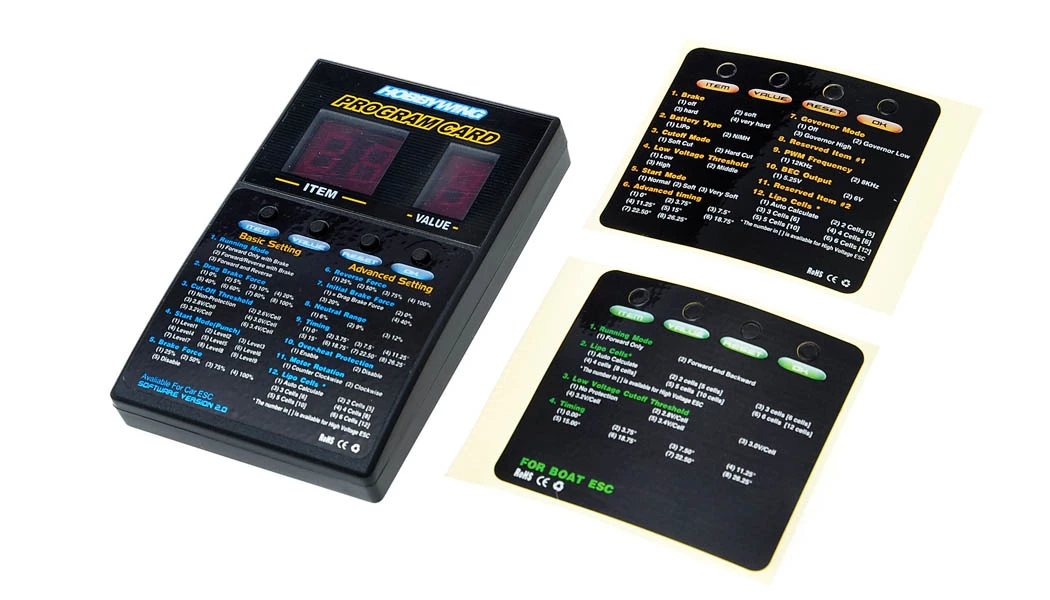

This program card is used to set the programmable parameters of brushless ESC, it has a friendly user interface to set the programmable parameters very easily. It is pocket-sized, so you can bring it to the racing or flying field conveniently. This program card has 3 kinds of front panel to suitable for the following ESCs: A) Product Number: LED_PC2A This is available for PLATINUM series aircraft/heli ESC;
B) Product Number: LED_PC2B This is available for SEAKING series boat ESC;
C) Product Number: LED_PC2C This is available for XERUN and EZRUN series (Version 2.0 ) car ESC; The hardware and software of the above 3 models of program cards are identical, so you can print the different front panel when using the program card with different ESC.
1 Specification
1.1 Size: 88mm (L) * 58mm (W) * 14mm (H) 1.2 Weight: 40g. 1.3 Input Voltage: 4.8-6V (If the ESC hasn?t a built-in BEC, you must use an additional battery pack to supply the program card)
A) The programmable items of LED_PC2A (Available for PLATINUM series aircraft/heli ESC) #1 Brake Setting #2 Battery Type #3 Low Voltage Protection Mode (Cutoff Mode) #4 Low Voltage Protection Threshold (Cutoff Threshold) #5 Start Mode #6 Timing #7 Governor Mode #8 Motor Type #9 PWM Frequency #10 Built-In BEC Output #11 Motor Load #12 Lipo Cells Front Panel Picture of LED_PC2A: B) The programmable items of LED_PC2B (Available for SEAKING series boat ESC) #1 Running Mode #2 Lipo Cells #3 Low Voltage Cutoff Threshold #4 Timing Front Panel Picture of LED_PC2B: C) The programmable items of LED_PC2C (Available for XERUN and EZRUN series car ESC of Version2) #1 Running Mode #2 Drag Brake Force #3 Low Voltage Cut-Off Threshold #4 Start Mode #5 Maximum Brake Force #6 Maximum Reverse Force #7 Initial Brake Force #8 Throttle Neutral Range #9 Timing #10 Over-Heat Protection #11 Motor Rotation #12 Lipo Cells (Note: The item #11 and #12 are not available for XERUN series ESC of Version 2, they only available for EZRUN series ESC)
Front Panel Picture of LED_PC2C: |
