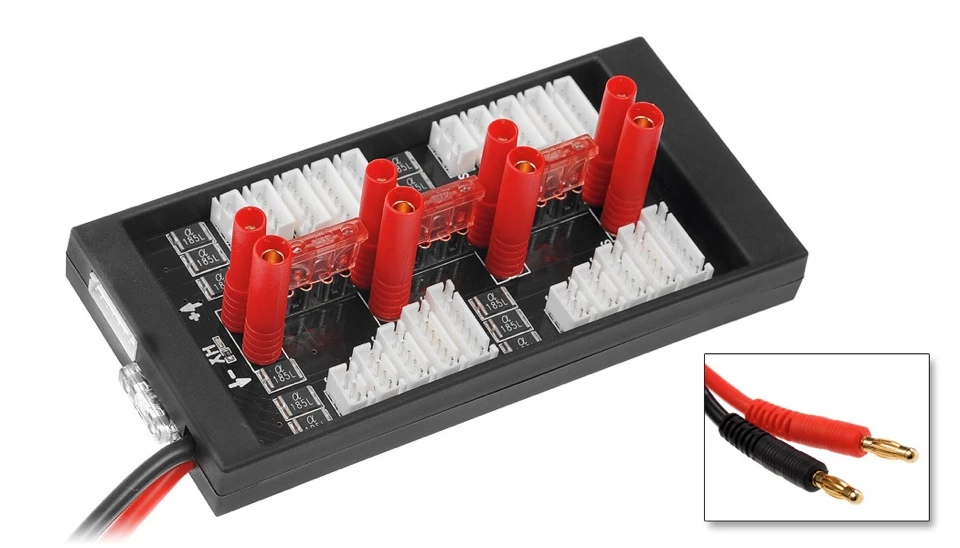

Paraboard Parallel Charge/Balance Board For Banana Connector 40 Amp

This device is to be used with a balance charger to simultaneously charge multiple lithium batteries in parallel. By this method you can significantly save time on the battery charging process.

The principle and practices of parallel charging lithium batteries have been well discussed in forums. This method has been proved to be a safe and efficient way to charge LI-PO Lipo batteries, and is being widely accepted by more and more RC hobbyists all over the world.

Parallel charging can save you time significantly. If you charge four batteries at the same time, the charge current is four times of that you used for a single pack, and you need only approximately 1/4 of the charge time to charge every battery separately.

Each board supports 4 batteries with JST XH  balance taps from 2S-6S. Since these ports and connectors are arranged in parallel, a banana connector plug and a balance port can be randomly matched for battery charge. These ParaBoards can be used for charging up to four batteries at the same time.

Our ParaBoard’s are made of selected high quality components. The PCB board is made of two ounce copper and the main power circuit is heavily tinned to allow the use of high current. our ParaBoard’s have been fully tested under 40 A continuous current.

Our parallel charge boards allow you to charge and balance up to four battery packs simultaneously without a clutter of wires. Constructed from the highest quality materials, they give you the best connection possible every time you charge your batteries.

The board is already wired in parallel, all you need to do is plug your batteries’ charge and balance connectors to the board – ensuring that all the batteries are the same cell count. Each board can charge up to four batteries, from 2S up to 6S, at up to a 40A charge rate.

Specifications:

• Charge Input Connectors: Male Banana Connector
• Balance Input Connectors: Female JST-XH (2S-6S)
• Charge Output Connector: Male 4mm Banana Plug
• Balance Output Connector: Male JST-XH (6S)
• Wire Type: 12 AWG Silicone
• Wire Length: 8″
• Board Dimensions: 140x68x17mm
• 40 Amp Current Capacity
