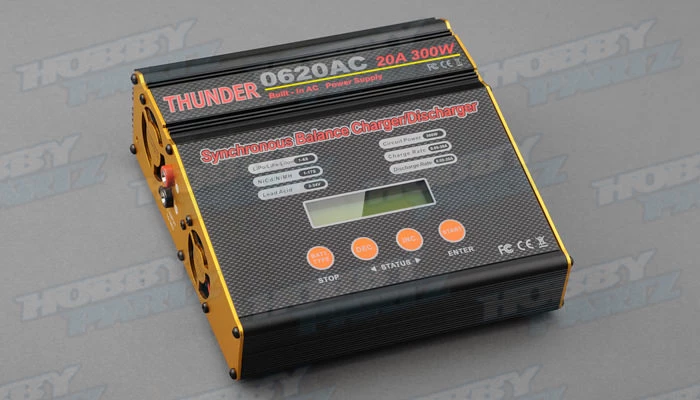

Thunder 0620AC 300Watt 20Amp Charger LiFe, LiLo,LiPo, NiCD, NiMh,PB W/ Built-n AC Power Supply

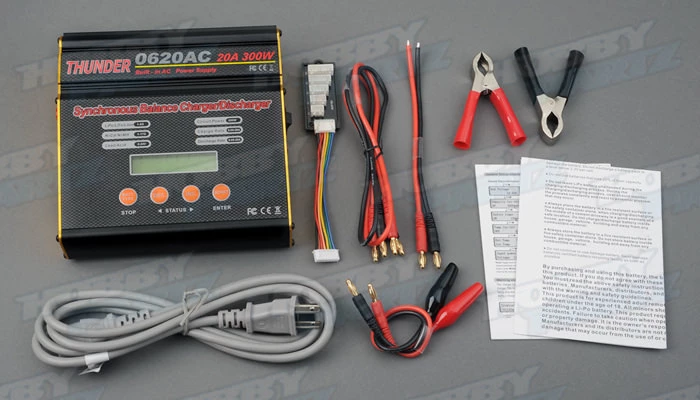

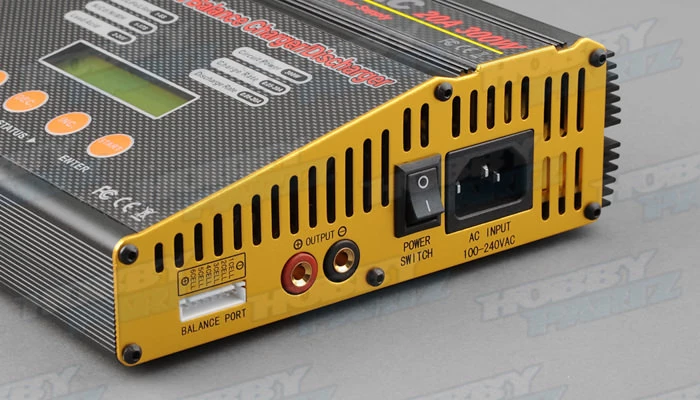

The Thunder 0620 charger is the long-anticipated and fully integrated AC/DC version of the popular 620 charger. The built-in AC power supply allows the charger to be easily and conveniently powered from a 100-240V outlet while the included DC input power leads can be connected to 12V lead-acid/gel cell batteries for charging at the flying field or outdoor track. The 0620 also includes all of the same great features you would expect of the 620 including the ability to charge, discharge and cycle a wide variety of 1-6S LiPo, LiIo and LiFe (A123) batteries, as well as 1-14 cell NiCd and NiMH along with 6-12V Pb (lead-acid) batteries. The built-in LiPo/LiIo/LiFe cell balancer and included balance connector adapter board are readily compatible with all Gens Ace and Sky Lipo balance connectors along with Airfield, Dynam, Art Tech and other manufacturer batteries. Other great features include an attractive and extremely durable aluminum case, plus the ability to charge at current rates of up to 20amp. That means less charging and more fun! The 0620 has a whole list of awesome special features and comes at an amazing value to the end user.

Special Features:

• High power, high current, high performance power conversion circuit. The charger uses advanced synchronous buck-boost dc/dc converter technology with an output conversion efficiency that can reach over 90%. This not only saves power and reduces heat build up but it also makes the charger more compact and conveniently mobile.

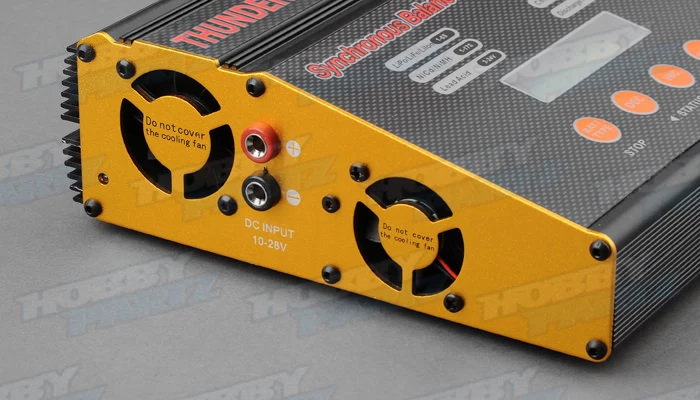

• Input power with 4mm bullet connectors (25A) butt-welded alligator clips and wide input voltage ranges from 10V – 28V. The output power can be adjusted to align with the available input power, thus preventing input current overload and protecting the DC source.
• The charger can be used with three types of Lithium batteries – LiPo, LiIo, LiFe and has a fully integrated cell balancer.
• Internal temperature sensor and temperature controlled automatic cooling fan controls the internal temperature and provides intelligent protection. When the internal temperature is over 60oC (140oF) the charge cycle is stopped.
• Convenient set of 10 battery profile memories that can be saved and loaded by number.

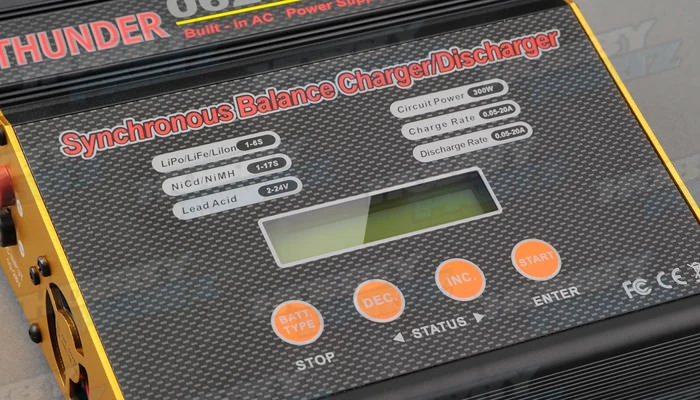

• 2×16 backlit LCD screen that provides rich information including active mode, current, voltage, total charge (mAh), charging time and temperature etc.
• Various charging/discharging settings and cycles to meet a wide range of customer needs.
• Lithium Batteries: balance charging, normal charging, fast charging, storage, discharging, ext-discharging, charge/discharge cycling, and battery monitoring.
• NiCD/Ni-MH Batteries: charging-auto, charging-manual, discharging charge/discharge cycling and forming charge.
• Pb Batteries: charging and discharging.
• 300w unique regenerative discharge capability. regenerative discharge takes most of the output batteries energy and puts it back into the input battery, which is not the same with the traditional methods of discharge to deplete that energy in the form of heat across a transistor. That is when you discharge your LiPo for storage, you will be re-charging your Lead Acid input battery. The amount of current and voltage that your input battery can accept limits the total amount of power that you can achieve, or 300w, whichever is lower.
• Unique Lithium battery expanding discharge program. When you connect the external capacity resistance, you can use it as the maximum discharge power capacity – 600w @ 30V/20A
• Unique Lithium battery monitor program. When you use other equipment to charge or discharge a Lithium pack, you can use the charger to monitor the per-cell voltages, battery temperature, and process time. If any individual cell appears over charged or over discharged or the pack is too hot or the process has gone on for too long, the charger will generate an alarm sound and the related information will blink.
• Electric motor test mode can be used to break-in electric motors, test motor parameters and performance, or check for tolerances.
• Foam-cut drive. In this mode the charger acts as a convenient power supply for a hot wire foam cutter.
• Battery internal resistance measurement. Measure the internal resistance of a battery pack, and also can measure the per-cell internal resistance. (Only available for lithium battery)
• Perfect protection. Features protection for reversed polarity (input or output), low input voltage, battery temperature, charging capacity, and time overrun.
• Built in 16Mbit flash storage which can log offline charge and discharge data for 36 hours.

Specifications:

• Input Voltage Range: 10 – 28 Volts DC
• Charge Current Range: 0.05 – 20.0Amp
• Discharge Current Range: 0.05 – 20.0Amp
• Maximum Charge Power Capacity: 300Watt @ input Voltage > 18Volt
• Maximum Discharge Power Capacity: 20Watt
• Maximum Regenerative Discharge Power Capacity: 300Watt
• Maximum Extern Discharge Power Capacity: 500Watt @ 25Volt/20Amp
• Current Drain for Battery Balancing: <350mA
• Balance Accuracy: <10mV
• Lithium (LiPo.LiIo/LiFe) Battery Cell Count: 1 – 6 series (in non-balance mode, expand LiFe to 8s)
• NiCd/NiMh Battery Cell Count: 1 – 17 series
• Pb Battery Cell Count: 1 – 12 series (2-24Volt)
• Log Files Storage: 16Mbit (36 hours)
• Battery Setup Memory: 10
• Intelligent Temperature Control: Yes
• Weight: 350grams (12.3oz)
• Dimensions: 140 x 95 x 27mm (5.5 x 3.7 x 1.1in)
