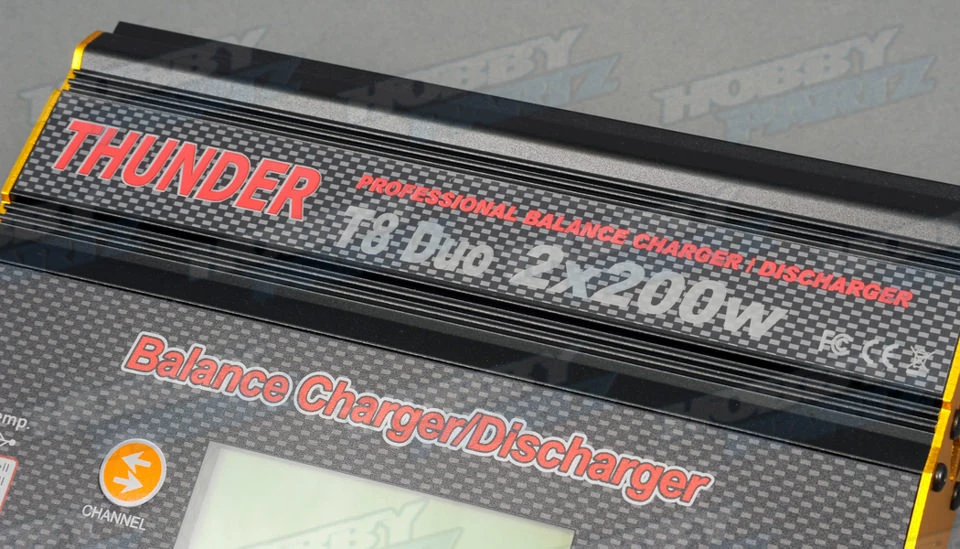

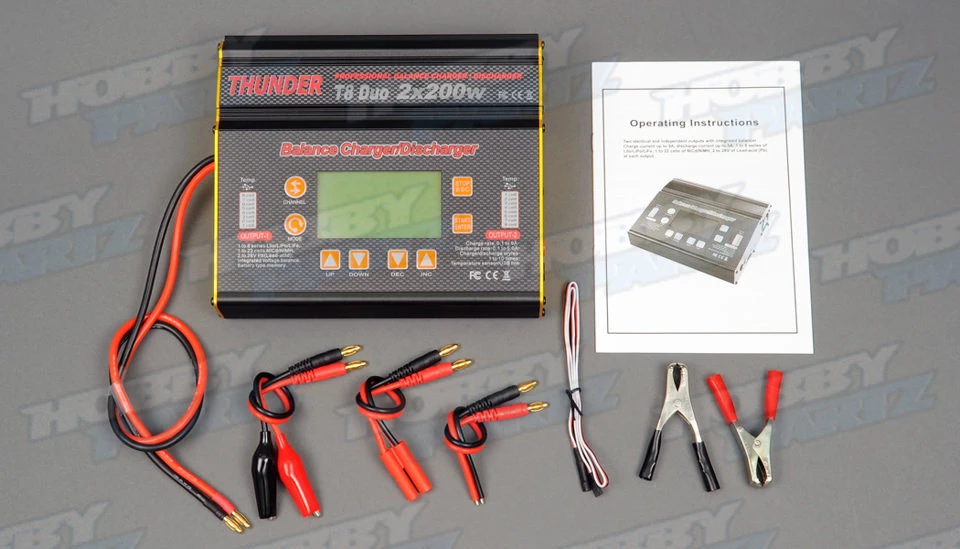

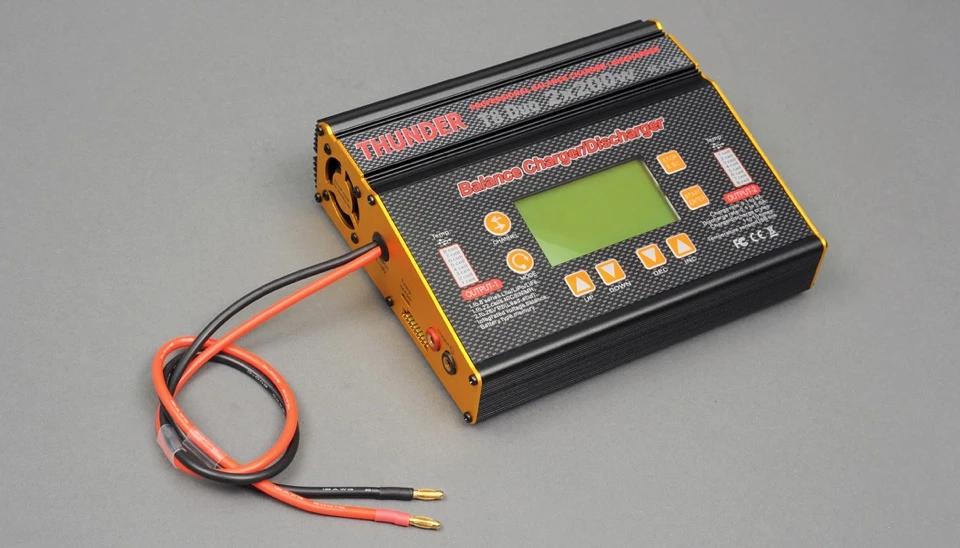

Thunder T8 200W Duo Charger 73P-T8Duo-Charger

The Thunder T8 Duo Charger is capable of charging a variety of batteries. It has the ability to charge up to 200 watts per output and deliver that power with up to 9 amps of current. The charger has two outputs on each side which means you can be charging or discharging two batteries at one time. Charge your lipo battery on one side while you cycle your other battery on the other. The T8 Duo will accept LI-PO Lipo, Li-Ion, or Li-Fe batteries up to 8 cells. It will also charge Nickel variants up to 22 cells and Lead Acid batteries up to 28Volts. With multiple safety features and data processing, this charger informs the user of battery condition and charge state at any time. This charger does not have an internal power supply so an external DC power of 11 ? 18 Volts will be required. A 12v battery from your car will suffice, however you do want to ensure you have ample capacity in your car battery so you are not left stranded because of this chargers powerful charging ability.

Special Features:

• Operating Software ? The operating software in this charger is executed with mutual links and communications with every component to prevent error to provide maximum safety. The charging algorithm is multifarious allowing you to select the best program to suit your requirement.

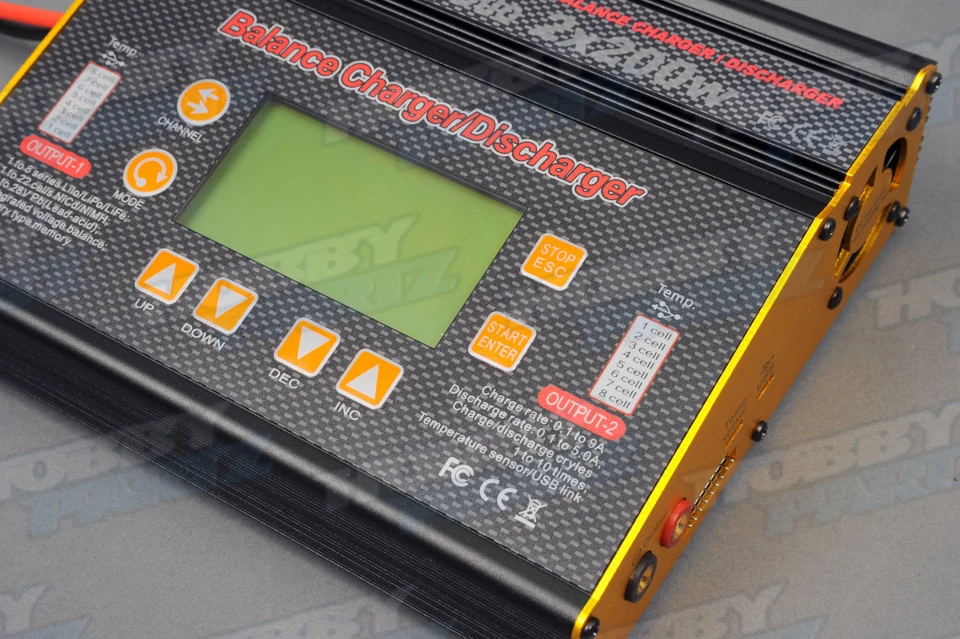

• Large LCD screen for displaying various charge and discharge information graphically
• High-Power dual output circuit ? The T8 Duo employs the circuit that features two totally independent but indentical high power outpust wich are powered as much as 200 watts equally at both outputs. As a result it can charge and sicharge up to 44 cells of Ni-Cd/NiMH or 16 series of lithium batteries simultaneously.
• Twin Fan cooling system provides efficient cooling for the powerful T8 Duo
• Dual individual voltage balancer for lithium batteries at both outputs
• Monitors lithium voltages on discharge preventing abnormal unbalanced discharge of battery cells
• Accepts various types of lithium batteries. Li-Io, Li-Fe, and LI-PO Lipo

Specifications:

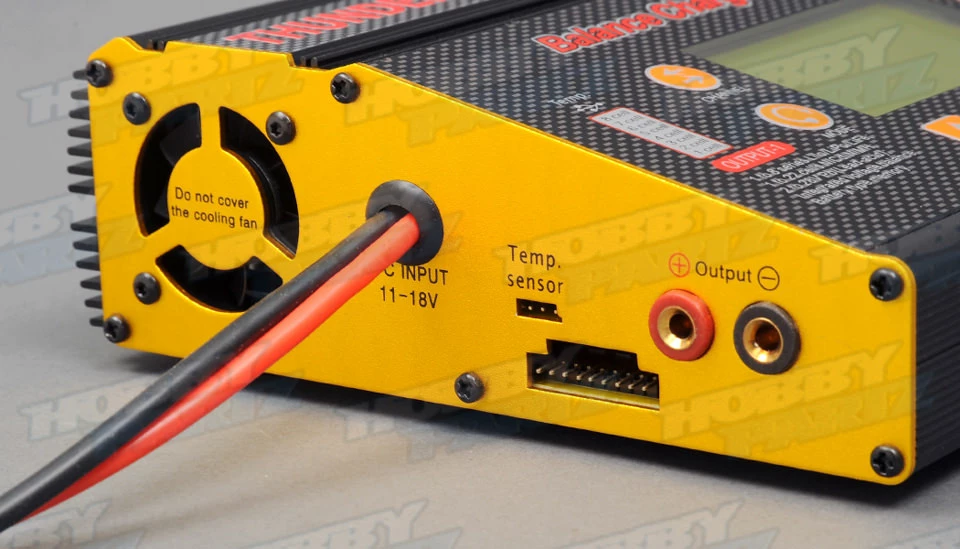

Operating Voltage Range: 11 ? 18V DC
Circuit Power: Charge Max 200W per output
Discharge Max 25W per output
Charge Current: 0.1 ? 9.0 A
Discharge Current: 0.1 ? 5.0 A
NiCd/Ni-Mh Battery Cell Count: 1 ? 22 cells at an output
Lithium Battery Cell Count: 1 ? 8 cells at an output
Pb Battery Voltage: 2 ? 28V at an output
Battery Data Memory: 5 Memories per program
Battery Capacity Range: 100 – 6500mAh
Delta-peak sensitivity: Disable/Delicate 5 ? 20mV adjustable
Temperature cut-off range: 20 ? 80C
68 ? 176F
Trickle Charge Current: OFF, 50 ? 30mA adjustable (N/A for Lixx)
Cycle Count: 1 ? 10 times (N/A for Lixx)
Cycle cool-off waste time: 0 ? 60 minutes adjustable
Current drain for balancing Lixx: 200mAh/cell
Weight: 1220g
Dimensions: 198 x 170 x 57mm
