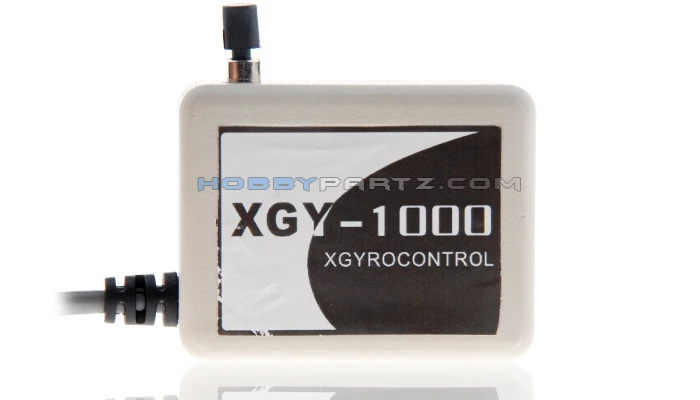

X-1000 Advanced Head-Movement-Tracker Gyro Designed For FPV (XGYRO1000)

X-GYRO 1000 is a two axis head tracking system, based on G sensor technology, designed for tracking complicated three-dimensional motion like head movement and so on, it can also be used on the areas of controlling drones and robots, transferring three-dimensional motion signals from hands, head of human to corresponding movement system on RC model, drone or robot.
The basic version of X-GYRO 1000 is specially designed for RC models with FPV(First Personal Version), it can be used perfectly with main stream transmitters or to be co-operated with wireless high frequency modular independently. It can transfer the movement signals to transmitter, and the transmitter can send out signals of head movement or position of head( on two axis), so that the real synchronization can be realized when screen on the goggles displayed video pictures, users can look around as if he were inside the RC model. Since it is compatible with transmitters in todays market, it is easy and straight forward to use. Its best advantage is that there is no need to have any fixed reference object to check and measure the inflection position of RC model, and no drift at all when it is in a stationary state compared with other products that need to make use of very complicated reference facilities or manual controlled transmitters.

Specifications:
Power: 8V to 12V DC power supply. Some
transmitters, especially those FUTABA ones, can supply power directly by trainer
connector. (ex. T9Z, FF9C). Some transmitters cannot supply power to X-GYRO, for
example 14MZ and 12FG. The simplest solution is to use an extra battery for those RC transmitters. The connector is already included in package.
Size: 25mmX35mm
Weight:20g
Range for measuring: +-90 degree/second rotational speed movement.

Default Setting:
Channels: X axis- channel 7 Y axis-channel 8
Detective range G45 degree

Choice for transmitters;
FUTABA: (FF-7, FF-8, FF-9, T9Z, T12MZ, T14MZ)
Graupner: (MC20, MC24, MX22)
Multiplex transmitter: (Royal Evo, Cockpit SX, mc4000)

JR and other transmitters without programmable channel: (9303, 9X)
